VARMAX models

This is a brief introduction notebook to VARMAX models in Statsmodels. The VARMAX model is generically specified as: $$ y_t = \nu + A_1 y_{t-1} + \dots + A_p y_{t-p} + B x_t + \epsilon_t + M_1 \epsilon_{t-1} + \dots M_q \epsilon_{t-q} $$

where $y_t$ is a $\text{k_endog} \times 1$ vector.

In [1]:
%matplotlib inline
In [2]:
import numpy as np
import pandas as pd
import statsmodels.api as sm
import matplotlib.pyplot as plt
In [3]:
dta = sm.datasets.webuse('lutkepohl2', 'https://www.stata-press.com/data/r12/')
dta.index = dta.qtr
endog = dta.loc['1960-04-01':'1978-10-01', ['dln_inv', 'dln_inc', 'dln_consump']]

Model specification

The VARMAX class in Statsmodels allows estimation of VAR, VMA, and VARMA models (through the order argument), optionally with a constant term (via the trend argument). Exogenous regressors may also be included (as usual in Statsmodels, by the exog argument), and in this way a time trend may be added. Finally, the class allows measurement error (via the measurement_error argument) and allows specifying either a diagonal or unstructured innovation covariance matrix (via the error_cov_type argument).

Example 1: VAR

Below is a simple VARX(2) model in two endogenous variables and an exogenous series, but no constant term. Notice that we needed to allow for more iterations than the default (which is maxiter=50) in order for the likelihood estimation to converge. This is not unusual in VAR models which have to estimate a large number of parameters, often on a relatively small number of time series: this model, for example, estimates 27 parameters off of 75 observations of 3 variables.

In [4]:
exog = endog['dln_consump']
mod = sm.tsa.VARMAX(endog[['dln_inv', 'dln_inc']], order=(2,0), trend='nc', exog=exog)
res = mod.fit(maxiter=1000, disp=False)
print(res.summary())
/home/travis/build/statsmodels/statsmodels/statsmodels/tsa/base/tsa_model.py:165: ValueWarning: No frequency information was provided, so inferred frequency QS-OCT will be used.
  % freq, ValueWarning)
                             Statespace Model Results
==================================================================================
Dep. Variable:     ['dln_inv', 'dln_inc']   No. Observations:                   75
Model:                            VARX(2)   Log Likelihood                 361.037
Date:                    Mon, 25 Mar 2019   AIC                           -696.074
Time:                            20:23:20   BIC                           -665.947
Sample:                        04-01-1960   HQIC                          -684.045
                             - 10-01-1978
Covariance Type:                      opg
===================================================================================
Ljung-Box (Q):                61.25, 39.44   Jarque-Bera (JB):          11.00, 2.49
Prob(Q):                        0.02, 0.50   Prob(JB):                   0.00, 0.29
Heteroskedasticity (H):         0.45, 0.40   Skew:                      0.16, -0.39
Prob(H) (two-sided):            0.05, 0.03   Kurtosis:                   4.85, 3.45
                            Results for equation dln_inv
====================================================================================
                       coef    std err          z      P>|z|      [0.025      0.975]
------------------------------------------------------------------------------------
L1.dln_inv          -0.2392      0.093     -2.574      0.010      -0.421      -0.057
L1.dln_inc           0.2859      0.448      0.638      0.524      -0.593       1.164
L2.dln_inv          -0.1673      0.155     -1.081      0.280      -0.471       0.136
L2.dln_inc           0.0553      0.420      0.132      0.895      -0.768       0.878
beta.dln_consump     0.9853      0.636      1.549      0.121      -0.261       2.232
                            Results for equation dln_inc
====================================================================================
                       coef    std err          z      P>|z|      [0.025      0.975]
------------------------------------------------------------------------------------
L1.dln_inv           0.0631      0.036      1.762      0.078      -0.007       0.133
L1.dln_inc           0.0820      0.107      0.765      0.444      -0.128       0.292
L2.dln_inv           0.0113      0.033      0.343      0.732      -0.053       0.076
L2.dln_inc           0.0314      0.134      0.234      0.815      -0.232       0.295
beta.dln_consump     0.7745      0.113      6.882      0.000       0.554       0.995
                                  Error covariance matrix
============================================================================================
                               coef    std err          z      P>|z|      [0.025      0.975]
--------------------------------------------------------------------------------------------
sqrt.var.dln_inv             0.0433      0.004     12.308      0.000       0.036       0.050
sqrt.cov.dln_inv.dln_inc  5.414e-05      0.002      0.027      0.979      -0.004       0.004
sqrt.var.dln_inc             0.0109      0.001     11.211      0.000       0.009       0.013
============================================================================================

Warnings:
[1] Covariance matrix calculated using the outer product of gradients (complex-step).

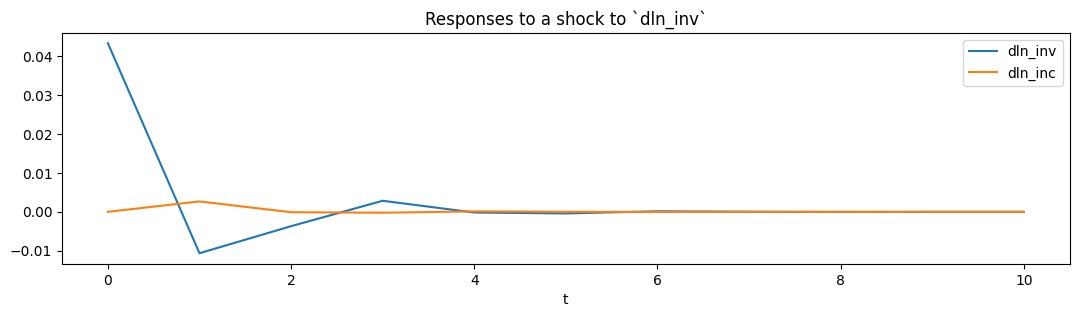

From the estimated VAR model, we can plot the impulse response functions of the endogenous variables.

In [5]:
ax = res.impulse_responses(10, orthogonalized=True).plot(figsize=(13,3))
ax.set(xlabel='t', title='Responses to a shock to `dln_inv`');

Example 2: VMA

A vector moving average model can also be formulated. Below we show a VMA(2) on the same data, but where the innovations to the process are uncorrelated. In this example we leave out the exogenous regressor but now include the constant term.

In [6]:
mod = sm.tsa.VARMAX(endog[['dln_inv', 'dln_inc']], order=(0,2), error_cov_type='diagonal')
res = mod.fit(maxiter=1000, disp=False)
print(res.summary())
/home/travis/build/statsmodels/statsmodels/statsmodels/tsa/base/tsa_model.py:165: ValueWarning: No frequency information was provided, so inferred frequency QS-OCT will be used.
  % freq, ValueWarning)
                             Statespace Model Results
==================================================================================
Dep. Variable:     ['dln_inv', 'dln_inc']   No. Observations:                   75
Model:                             VMA(2)   Log Likelihood                 353.887
                              + intercept   AIC                           -683.774
Date:                    Mon, 25 Mar 2019   BIC                           -655.964
Time:                            20:23:24   HQIC                          -672.670
Sample:                        04-01-1960
                             - 10-01-1978
Covariance Type:                      opg
===================================================================================
Ljung-Box (Q):                68.61, 39.33   Jarque-Bera (JB):         12.77, 13.96
Prob(Q):                        0.00, 0.50   Prob(JB):                   0.00, 0.00
Heteroskedasticity (H):         0.44, 0.81   Skew:                      0.06, -0.49
Prob(H) (two-sided):            0.04, 0.59   Kurtosis:                   5.02, 4.87
                           Results for equation dln_inv
=================================================================================
                    coef    std err          z      P>|z|      [0.025      0.975]
---------------------------------------------------------------------------------
intercept         0.0182      0.005      3.809      0.000       0.009       0.028
L1.e(dln_inv)    -0.2576      0.106     -2.437      0.015      -0.465      -0.050
L1.e(dln_inc)     0.5044      0.629      0.802      0.422      -0.728       1.737
L2.e(dln_inv)     0.0286      0.149      0.192      0.848      -0.264       0.321
L2.e(dln_inc)     0.1951      0.475      0.410      0.682      -0.737       1.127
                           Results for equation dln_inc
=================================================================================
                    coef    std err          z      P>|z|      [0.025      0.975]
---------------------------------------------------------------------------------
intercept         0.0207      0.002     13.065      0.000       0.018       0.024
L1.e(dln_inv)     0.0477      0.042      1.145      0.252      -0.034       0.129
L1.e(dln_inc)    -0.0709      0.141     -0.503      0.615      -0.347       0.205
L2.e(dln_inv)     0.0181      0.043      0.424      0.672      -0.065       0.102
L2.e(dln_inc)     0.1199      0.154      0.780      0.435      -0.181       0.421
                             Error covariance matrix
==================================================================================
                     coef    std err          z      P>|z|      [0.025      0.975]
----------------------------------------------------------------------------------
sigma2.dln_inv     0.0020      0.000      7.345      0.000       0.001       0.003
sigma2.dln_inc     0.0001   2.32e-05      5.840      0.000    9.01e-05       0.000
==================================================================================

Warnings:
[1] Covariance matrix calculated using the outer product of gradients (complex-step).

Caution: VARMA(p,q) specifications

Although the model allows estimating VARMA(p,q) specifications, these models are not identified without additional restrictions on the representation matrices, which are not built-in. For this reason, it is recommended that the user proceed with error (and indeed a warning is issued when these models are specified). Nonetheless, they may in some circumstances provide useful information.

In [7]:
mod = sm.tsa.VARMAX(endog[['dln_inv', 'dln_inc']], order=(1,1))
res = mod.fit(maxiter=1000, disp=False)
print(res.summary())
/home/travis/build/statsmodels/statsmodels/statsmodels/tsa/statespace/varmax.py:159: EstimationWarning: Estimation of VARMA(p,q) models is not generically robust, due especially to identification issues.
  EstimationWarning)
/home/travis/build/statsmodels/statsmodels/statsmodels/tsa/base/tsa_model.py:165: ValueWarning: No frequency information was provided, so inferred frequency QS-OCT will be used.
  % freq, ValueWarning)
                             Statespace Model Results
==================================================================================
Dep. Variable:     ['dln_inv', 'dln_inc']   No. Observations:                   75
Model:                         VARMA(1,1)   Log Likelihood                 354.289
                              + intercept   AIC                           -682.579
Date:                    Mon, 25 Mar 2019   BIC                           -652.452
Time:                            20:23:27   HQIC                          -670.549
Sample:                        04-01-1960
                             - 10-01-1978
Covariance Type:                      opg
===================================================================================
Ljung-Box (Q):                68.35, 39.09   Jarque-Bera (JB):         11.00, 14.14
Prob(Q):                        0.00, 0.51   Prob(JB):                   0.00, 0.00
Heteroskedasticity (H):         0.43, 0.90   Skew:                      0.01, -0.46
Prob(H) (two-sided):            0.04, 0.80   Kurtosis:                   4.88, 4.92
                           Results for equation dln_inv
=================================================================================
                    coef    std err          z      P>|z|      [0.025      0.975]
---------------------------------------------------------------------------------
intercept         0.0105      0.066      0.160      0.873      -0.118       0.139
L1.dln_inv       -0.0112      0.694     -0.016      0.987      -1.371       1.348
L1.dln_inc        0.3849      2.776      0.139      0.890      -5.055       5.825
L1.e(dln_inv)    -0.2443      0.705     -0.347      0.729      -1.625       1.137
L1.e(dln_inc)     0.1226      3.026      0.041      0.968      -5.809       6.054
                           Results for equation dln_inc
=================================================================================
                    coef    std err          z      P>|z|      [0.025      0.975]
---------------------------------------------------------------------------------
intercept         0.0165      0.027      0.605      0.545      -0.037       0.070
L1.dln_inv       -0.0311      0.276     -0.113      0.910      -0.572       0.510
L1.dln_inc        0.2318      1.110      0.209      0.835      -1.945       2.408
L1.e(dln_inv)     0.0867      0.283      0.307      0.759      -0.467       0.641
L1.e(dln_inc)    -0.2334      1.145     -0.204      0.838      -2.478       2.011
                                  Error covariance matrix
============================================================================================
                               coef    std err          z      P>|z|      [0.025      0.975]
--------------------------------------------------------------------------------------------
sqrt.var.dln_inv             0.0449      0.003     14.508      0.000       0.039       0.051
sqrt.cov.dln_inv.dln_inc     0.0017      0.003      0.651      0.515      -0.003       0.007
sqrt.var.dln_inc             0.0116      0.001     11.746      0.000       0.010       0.013
============================================================================================

Warnings:
[1] Covariance matrix calculated using the outer product of gradients (complex-step).
