statsmodels.graphics.functional.hdrboxplot¶

statsmodels.graphics.functional.
hdrboxplot
(data, ncomp=2, alpha=None, threshold=0.95, bw=None, xdata=None, labels=None, ax=None, use_brute=False, seed=None)[source]¶ High Density Region boxplot
Parameters:  data (sequence of ndarrays or 2D ndarray) – The vectors of functions to create a functional boxplot from. If a
sequence of 1D arrays, these should all be the same size.
The first axis is the function index, the second axis the one along
which the function is defined. So
data[0, :]
is the first functional curve.  ncomp (int, optional) – Number of components to use. If None, returns the as many as the smaller of the number of rows or columns in data.
 alpha (list of floats between 0 and 1, optional) – Extra quantile values to compute. Default is None
 threshold (float between 0 and 1, optional) – Percentile threshold value for outliers detection. High value means a lower sensitivity to outliers. Default is 0.95.
 bw (array_like or str, optional) –
If an array, it is a fixed userspecified bandwidth. If None, set to normal_reference. If a string, should be one of:
 normal_reference: normal reference rule of thumb (default)
 cv_ml: cross validation maximum likelihood
 cv_ls: cross validation least squares
 xdata (ndarray, optional) – The independent variable for the data. If not given, it is assumed to be an array of integers 0..N1 with N the length of the vectors in data.
 labels (sequence of scalar or str, optional) – The labels or identifiers of the curves in data. If not given, outliers are labeled in the plot with array indices.
 ax (Matplotlib AxesSubplot instance, optional) – If given, this subplot is used to plot in instead of a new figure being created.
 use_brute (bool) – Use the brute force optimizer instead of the default differential evolution to find the curves. Default is False.
 seed ({None, int, np.random.RandomState}) – Seed value to pass to scipy.optimize.differential_evolution. Can be an integer or RandomState instance. If None, then the default RandomState provided by np.random is used.
Returns: fig (Matplotlib figure instance) – If ax is None, the created figure. Otherwise the figure to which ax is connected.
hdr_res (HdrResults instance) –
An HdrResults instance with the following attributes:
 ’median’, array. Median curve.
 ’hdr_50’, array. 50% quantile band. [sup, inf] curves
 ’hdr_90’, list of array. 90% quantile band. [sup, inf]
 curves.
 ’extra_quantiles’, list of array. Extra quantile band.
 [sup, inf] curves.
 ’outliers’, ndarray. Outlier curves.
Notes
The median curve is the curve with the highest probability on the reduced space of a Principal Component Analysis (PCA).
Outliers are defined as curves that fall outside the band corresponding to the quantile given by threshold.
The nonoutlying region is defined as the band made up of all the nonoutlying curves.
Behind the scene, the dataset is represented as a matrix. Each line corresponding to a 1D curve. This matrix is then decomposed using Principal Components Analysis (PCA). This allows to represent the data using a finite number of modes, or components. This compression process allows to turn the functional representation into a scalar representation of the matrix. In other words, you can visualize each curve from its components. Each curve is thus a point in this reduced space. With 2 components, this is called a bivariate plot (2D plot).
In this plot, if some points are adjacent (similar components), it means that back in the original space, the curves are similar. Then, finding the median curve means finding the higher density region (HDR) in the reduced space. Moreover, the more you get away from this HDR, the more the curve is unlikely to be similar to the other curves.
Using a kernel smoothing technique, the probability density function (PDF) of the multivariate space can be recovered. From this PDF, it is possible to compute the density probability linked to the cluster of points and plot its contours.
Finally, using these contours, the different quantiles can be extracted along with the median curve and the outliers.
Steps to produce the HDR boxplot include:
 Compute a multivariate kernel density estimation
 Compute contour lines for quantiles 90%, 50% and alpha %
 Plot the bivariate plot
 Compute median curve along with quantiles and outliers curves.
References
 [1] R.J. Hyndman and H.L. Shang, “Rainbow Plots, Bagplots, and Boxplots for
 Functional Data”, vol. 19, pp. 2945, 2010.
Examples
Load the El Nino dataset. Consists of 60 years worth of Pacific Ocean sea surface temperature data.
>>> import matplotlib.pyplot as plt >>> import statsmodels.api as sm >>> data = sm.datasets.elnino.load(as_pandas=False)

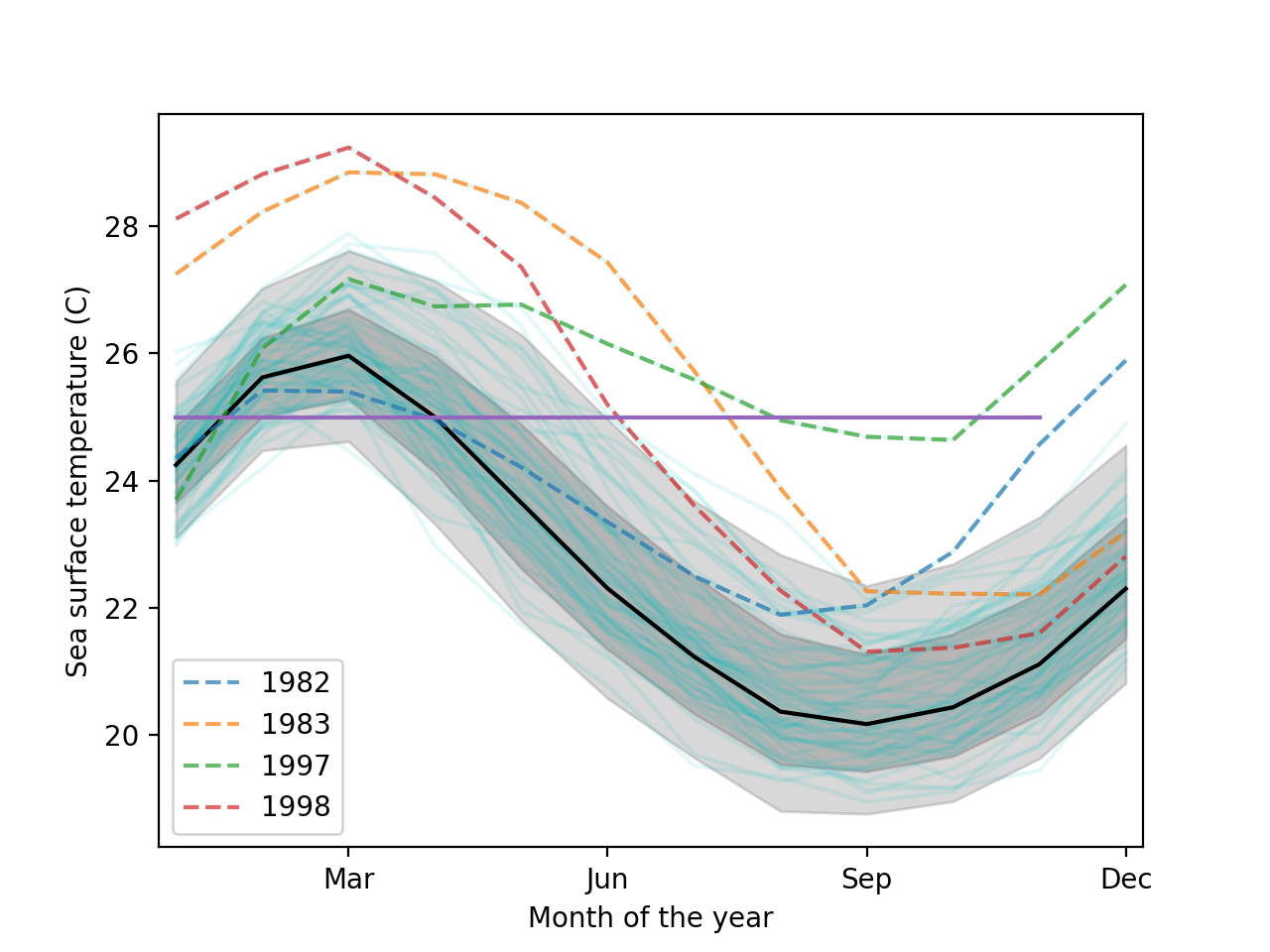

Create a functional boxplot. We see that the years 198283 and 199798 are outliers; these are the years where El Nino (a climate pattern characterized by warming up of the sea surface and higher air pressures) occurred with unusual intensity.
>>> fig = plt.figure() >>> ax = fig.add_subplot(111) >>> res = sm.graphics.hdrboxplot(data.raw_data[:, 1:], ... labels=data.raw_data[:, 0].astype(int), ... ax=ax)
>>> ax.set_xlabel("Month of the year") >>> ax.set_ylabel("Sea surface temperature (C)") >>> ax.set_xticks(np.arange(13, step=3)  1) >>> ax.set_xticklabels(["", "Mar", "Jun", "Sep", "Dec"]) >>> ax.set_xlim([0.2, 11.2])
>>> plt.show()
(Source code, png, hires.png, pdf)
