statsmodels.graphics.functional.fboxplot¶

statsmodels.graphics.functional.
fboxplot
(data, xdata=None, labels=None, depth=None, method='MBD', wfactor=1.5, ax=None, plot_opts={})[source]¶ Plot functional boxplot.
A functional boxplot is the analog of a boxplot for functional data. Functional data is any type of data that varies over a continuum, i.e. curves, probabillity distributions, seasonal data, etc.
The data is first ordered, the order statistic used here is banddepth. Plotted are then the median curve, the envelope of the 50% central region, the maximum nonoutlying envelope and the outlier curves.
Parameters:  data (sequence of ndarrays or 2D ndarray) – The vectors of functions to create a functional boxplot from. If a
sequence of 1D arrays, these should all be the same size.
The first axis is the function index, the second axis the one along
which the function is defined. So
data[0, :]
is the first functional curve.  xdata (ndarray, optional) – The independent variable for the data. If not given, it is assumed to be an array of integers 0..N1 with N the length of the vectors in data.
 labels (sequence of scalar or str, optional) – The labels or identifiers of the curves in data. If given, outliers are labeled in the plot.
 depth (ndarray, optional) – A 1D array of band depths for data, or equivalent order statistic. If not given, it will be calculated through banddepth.
 method ({'MBD', 'BD2'}, optional) – The method to use to calculate the band depth. Default is ‘MBD’.
 wfactor (float, optional) – Factor by which the central 50% region is multiplied to find the outer region (analog of “whiskers” of a classical boxplot).
 ax (Matplotlib AxesSubplot instance, optional) – If given, this subplot is used to plot in instead of a new figure being created.
 plot_opts (dict, optional) –
A dictionary with plotting options. Any of the following can be provided, if not present in plot_opts the defaults will be used:
 'cmap_outliers', a Matplotlib LinearSegmentedColormap instance.  'c_inner', valid MPL color. Color of the central 50% region  'c_outer', valid MPL color. Color of the nonoutlying region  'c_median', valid MPL color. Color of the median.  'lw_outliers', scalar. Linewidth for drawing outlier curves.  'lw_median', scalar. Linewidth for drawing the median curve.  'draw_nonout', bool. If True, also draw nonoutlying curves.
Returns:  fig (Matplotlib figure instance) – If ax is None, the created figure. Otherwise the figure to which ax is connected.
 depth (ndarray) – 1D array containing the calculated band depths of the curves.
 ix_depth (ndarray) – 1D array of indices needed to order curves (or depth) from most to least central curve.
 ix_outliers (ndarray) – 1D array of indices of outlying curves in data.
See also
Notes
The median curve is the curve with the highest band depth.
Outliers are defined as curves that fall outside the band created by multiplying the central region by wfactor. Note that the range over which they fall outside this band doesn’t matter, a single data point outside the band is enough. If the data is noisy, smoothing may therefore be required.
The nonoutlying region is defined as the band made up of all the nonoutlying curves.
References
 [1] Y. Sun and M.G. Genton, “Functional Boxplots”, Journal of Computational
 and Graphical Statistics, vol. 20, pp. 119, 2011.
 [2] R.J. Hyndman and H.L. Shang, “Rainbow Plots, Bagplots, and Boxplots for
 Functional Data”, vol. 19, pp. 2945, 2010.
Examples
Load the El Nino dataset. Consists of 60 years worth of Pacific Ocean sea surface temperature data.
>>> import matplotlib.pyplot as plt >>> import statsmodels.api as sm >>> data = sm.datasets.elnino.load()

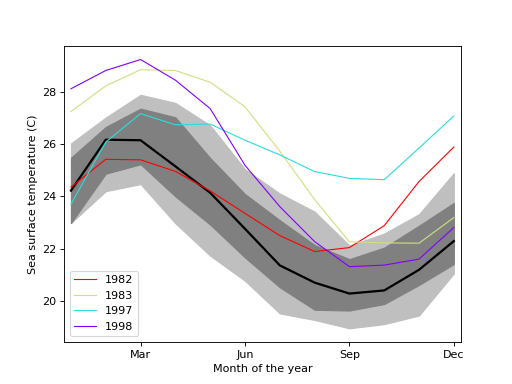

Create a functional boxplot. We see that the years 198283 and 199798 are outliers; these are the years where El Nino (a climate pattern characterized by warming up of the sea surface and higher air pressures) occurred with unusual intensity.
>>> fig = plt.figure() >>> ax = fig.add_subplot(111) >>> res = sm.graphics.fboxplot(data.raw_data[:, 1:], wfactor=2.58, ... labels=data.raw_data[:, 0].astype(int), ... ax=ax)
>>> ax.set_xlabel("Month of the year") >>> ax.set_ylabel("Sea surface temperature (C)") >>> ax.set_xticks(np.arange(13, step=3)  1) >>> ax.set_xticklabels(["", "Mar", "Jun", "Sep", "Dec"]) >>> ax.set_xlim([0.2, 11.2])
>>> plt.show()
(Source code, png, hires.png, pdf)
