statsmodels.tsa.arima_model.ARIMAResults.plot_predict¶
method

ARIMAResults.
plot_predict
(start=None, end=None, exog=None, dynamic=False, alpha=0.05, plot_insample=True, ax=None)[source]¶ Plot forecasts
 Parameters
 startint, str, or datetime
Zeroindexed observation number at which to start forecasting, ie., the first forecast is start. Can also be a date string to parse or a datetime type.
 endint, str, or datetime
Zeroindexed observation number at which to end forecasting, ie., the first forecast is start. Can also be a date string to parse or a datetime type. However, if the dates index does not have a fixed frequency, end must be an integer index if you want out of sample prediction.
 exogarraylike, optional
If the model is an ARMAX and outofsample forecasting is requested, exog must be given. Note that you’ll need to pass k_ar additional lags for any exogenous variables. E.g., if you fit an ARMAX(2, q) model and want to predict 5 steps, you need 7 observations to do this.
 dynamicbool, optional
The dynamic keyword affects insample prediction. If dynamic is False, then the insample lagged values are used for prediction. If dynamic is True, then insample forecasts are used in place of lagged dependent variables. The first forecasted value is start.
 alphafloat, optional
The confidence intervals for the forecasts are (1  alpha)%
 plot_insamplebool, optional
Whether to plot the insample series. Default is True.
 axmatplotlib.Axes, optional
Existing axes to plot with.
 Returns
 figmatplotlib.Figure
The plotted Figure instance
Notes
This is hardcoded to only allow plotting of the forecasts in levels. It is recommended to use dates with the timeseries models, as the below will probably make clear. However, if ARIMA is used without dates and/or start and end are given as indices, then these indices are in terms of the original, undifferenced series. Ie., given some undifferenced observations:
1970Q1, 1 1970Q2, 1.5 1970Q3, 1.25 1970Q4, 2.25 1971Q1, 1.2 1971Q2, 4.1
1970Q1 is observation 0 in the original series. However, if we fit an ARIMA(p,1,q) model then we lose this first observation through differencing. Therefore, the first observation we can forecast (if using exact MLE) is index 1. In the differenced series this is index 0, but we refer to it as 1 from the original series.
Examples

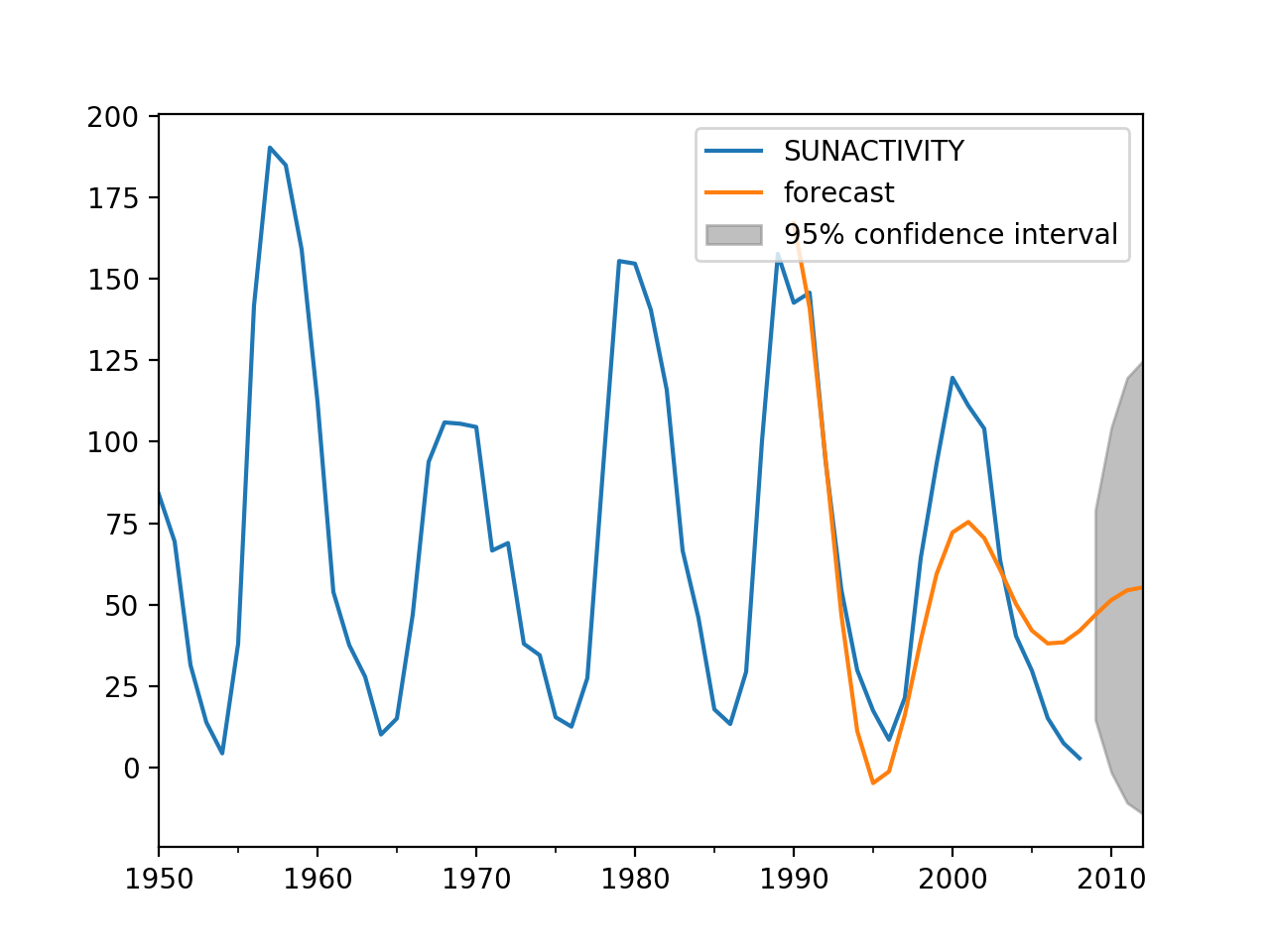

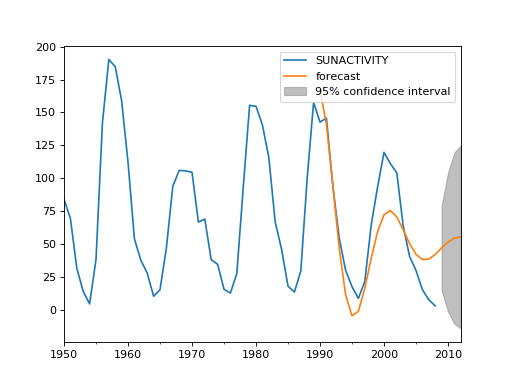

>>> import statsmodels.api as sm >>> import matplotlib.pyplot as plt >>> import pandas as pd >>> >>> dta = sm.datasets.sunspots.load_pandas().data[['SUNACTIVITY']] >>> dta.index = pd.date_range(start='1700', end='2009', freq='A') >>> res = sm.tsa.ARMA(dta, (3, 0)).fit() >>> fig, ax = plt.subplots() >>> ax = dta.loc['1950':].plot(ax=ax) >>> fig = res.plot_predict('1990', '2012', dynamic=True, ax=ax, ... plot_insample=False) >>> plt.show()
(Source code, png, hires.png, pdf)
