Kernel Density Estimation

Kernel density estimation is the process of estimating an unknown probability density function using a kernel function \(K(u)\). While a histogram counts the number of data points in somewhat arbitrary regions, a kernel density estimate is a function defined as the sum of a kernel function on every data point. The kernel function typically exhibits the following properties:

  1. Symmetry such that \(K(u) = K(-u)\).

  2. Normalization such that \(\int_{-\infty}^{\infty} K(u) \ du = 1\) .

  3. Monotonically decreasing such that \(K'(u) < 0\) when \(u > 0\).

  4. Expected value equal to zero such that \(\mathrm{E}[K] = 0\).

For more information about kernel density estimation, see for instance Wikipedia - Kernel density estimation.

A univariate kernel density estimator is implemented in sm.nonparametric.KDEUnivariate. In this example we will show the following:

  • Basic usage, how to fit the estimator.

  • The effect of varying the bandwidth of the kernel using the bw argument.

  • The various kernel functions available using the kernel argument.

[1]:
%matplotlib inline
import numpy as np
from scipy import stats
import statsmodels.api as sm
import matplotlib.pyplot as plt
from statsmodels.distributions.mixture_rvs import mixture_rvs

A univariate example

[2]:
np.random.seed(12345) # Seed the random number generator for reproducible results

We create a bimodal distribution: a mixture of two normal distributions with locations at -1 and 1.

[3]:
# Location, scale and weight for the two distributions
dist1_loc, dist1_scale, weight1 = -1 , .5, .25
dist2_loc, dist2_scale, weight2 = 1 , .5, .75

# Sample from a mixture of distributions
obs_dist = mixture_rvs(prob=[weight1, weight2], size=250,
                        dist=[stats.norm, stats.norm],
                        kwargs = (dict(loc=dist1_loc, scale=dist1_scale),
                                  dict(loc=dist2_loc, scale=dist2_scale)))

The simplest non-parametric technique for density estimation is the histogram.

[4]:
fig = plt.figure(figsize=(12, 5))
ax = fig.add_subplot(111)

# Scatter plot of data samples and histogram
ax.scatter(obs_dist, np.abs(np.random.randn(obs_dist.size)),
            zorder=15, color='red', marker='x', alpha=0.5, label='Samples')
lines = ax.hist(obs_dist, bins=20, edgecolor='k', label='Histogram')

ax.legend(loc='best')
ax.grid(True, zorder=-5)
../../../_images/examples_notebooks_generated_kernel_density_7_0.png

Fitting with the default arguments

The histogram above is discontinuous. To compute a continuous probability density function, we can use kernel density estimation.

We initialize a univariate kernel density estimator using KDEUnivariate.

[5]:
kde = sm.nonparametric.KDEUnivariate(obs_dist)
kde.fit() # Estimate the densities
[5]:
<statsmodels.nonparametric.kde.KDEUnivariate at 0x7fd6948434d0>

We present a figure of the fit, as well as the true distribution.

[6]:
fig = plt.figure(figsize=(12, 5))
ax = fig.add_subplot(111)

# Plot the histrogram
ax.hist(obs_dist, bins=20, density=True, label='Histogram from samples',
        zorder=5, edgecolor='k', alpha=0.5)

# Plot the KDE as fitted using the default arguments
ax.plot(kde.support, kde.density, lw=3, label='KDE from samples', zorder=10)

# Plot the true distribution
true_values = (stats.norm.pdf(loc=dist1_loc, scale=dist1_scale, x=kde.support)*weight1
              + stats.norm.pdf(loc=dist2_loc, scale=dist2_scale, x=kde.support)*weight2)
ax.plot(kde.support, true_values, lw=3, label='True distribution', zorder=15)

# Plot the samples
ax.scatter(obs_dist, np.abs(np.random.randn(obs_dist.size))/40,
           marker='x', color='red', zorder=20, label='Samples', alpha=0.5)

ax.legend(loc='best')
ax.grid(True, zorder=-5)
../../../_images/examples_notebooks_generated_kernel_density_12_0.png

In the code above, default arguments were used. We can also vary the bandwidth of the kernel, as we will now see.

Varying the bandwidth using the bw argument

The bandwidth of the kernel can be adjusted using the bw argument. In the following example, a bandwidth of bw=0.2 seems to fit the data well.

[7]:
fig = plt.figure(figsize=(12, 5))
ax = fig.add_subplot(111)

# Plot the histrogram
ax.hist(obs_dist, bins=25, label='Histogram from samples',
        zorder=5, edgecolor='k', density=True, alpha=0.5)

# Plot the KDE for various bandwidths
for bandwidth in [0.1, 0.2, 0.4]:
    kde.fit(bw=bandwidth) # Estimate the densities
    ax.plot(kde.support, kde.density, '--', lw=2, color='k', zorder=10,
            label='KDE from samples, bw = {}'.format(round(bandwidth, 2)))

# Plot the true distribution
ax.plot(kde.support, true_values, lw=3, label='True distribution', zorder=15)

# Plot the samples
ax.scatter(obs_dist, np.abs(np.random.randn(obs_dist.size))/50,
           marker='x', color='red', zorder=20, label='Data samples', alpha=0.5)

ax.legend(loc='best')
ax.set_xlim([-3, 3])
ax.grid(True, zorder=-5)
../../../_images/examples_notebooks_generated_kernel_density_16_0.png

Comparing kernel functions

In the example above, a Gaussian kernel was used. Several other kernels are also available.

[8]:
from statsmodels.nonparametric.kde import kernel_switch
list(kernel_switch.keys())
[8]:
['gau', 'epa', 'uni', 'tri', 'biw', 'triw', 'cos', 'cos2']

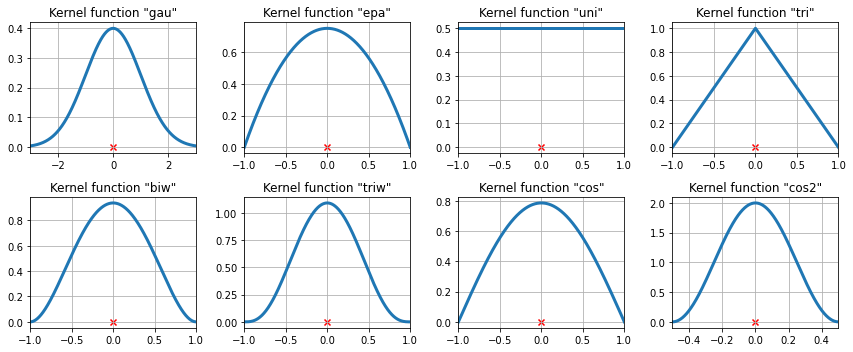

The available kernel functions

[9]:
# Create a figure
fig = plt.figure(figsize=(12, 5))

# Enumerate every option for the kernel
for i, (ker_name, ker_class) in enumerate(kernel_switch.items()):

    # Initialize the kernel object
    kernel = ker_class()

    # Sample from the domain
    domain = kernel.domain or [-3, 3]
    x_vals = np.linspace(*domain, num=2**10)
    y_vals = kernel(x_vals)

    # Create a subplot, set the title
    ax = fig.add_subplot(2, 4, i + 1)
    ax.set_title('Kernel function "{}"'.format(ker_name))
    ax.plot(x_vals, y_vals, lw=3, label='{}'.format(ker_name))
    ax.scatter([0], [0], marker='x', color='red')
    plt.grid(True, zorder=-5)
    ax.set_xlim(domain)

plt.tight_layout()
../../../_images/examples_notebooks_generated_kernel_density_21_0.png

The available kernel functions on three data points

We now examine how the kernel density estimate will fit to three equally spaced data points.

[10]:
# Create three equidistant points
data = np.linspace(-1, 1, 3)
kde = sm.nonparametric.KDEUnivariate(data)

# Create a figure
fig = plt.figure(figsize=(12, 5))

# Enumerate every option for the kernel
for i, kernel in enumerate(kernel_switch.keys()):

    # Create a subplot, set the title
    ax = fig.add_subplot(2, 4, i + 1)
    ax.set_title('Kernel function "{}"'.format(kernel))

    # Fit the model (estimate densities)
    kde.fit(kernel=kernel, fft=False, gridsize=2**10)

    # Create the plot
    ax.plot(kde.support, kde.density, lw=3, label='KDE from samples', zorder=10)
    ax.scatter(data, np.zeros_like(data), marker='x', color='red')
    plt.grid(True, zorder=-5)
    ax.set_xlim([-3, 3])

plt.tight_layout()
../../../_images/examples_notebooks_generated_kernel_density_24_0.png

A more difficult case

The fit is not always perfect. See the example below for a harder case.

[11]:
obs_dist = mixture_rvs([.25, .75], size=250, dist=[stats.norm, stats.beta],
            kwargs = (dict(loc=-1, scale=.5), dict(loc=1, scale=1, args=(1, .5))))
[12]:
kde = sm.nonparametric.KDEUnivariate(obs_dist)
kde.fit()
[12]:
<statsmodels.nonparametric.kde.KDEUnivariate at 0x7fd692876fd0>
[13]:
fig = plt.figure(figsize=(12, 5))
ax = fig.add_subplot(111)
ax.hist(obs_dist, bins=20, density=True, edgecolor='k', zorder=4, alpha=0.5)
ax.plot(kde.support, kde.density, lw=3, zorder=7)
# Plot the samples
ax.scatter(obs_dist, np.abs(np.random.randn(obs_dist.size))/50,
           marker='x', color='red', zorder=20, label='Data samples', alpha=0.5)
ax.grid(True, zorder=-5)

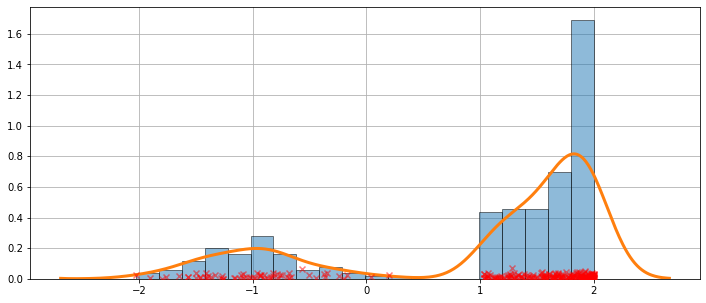

../../../_images/examples_notebooks_generated_kernel_density_28_0.png

The KDE is a distribution

Since the KDE is a distribution, we can access attributes and methods such as:

  • entropy

  • evaluate

  • cdf

  • icdf

  • sf

  • cumhazard

[14]:
obs_dist = mixture_rvs([.25, .75], size=1000, dist=[stats.norm, stats.norm],
                kwargs = (dict(loc=-1, scale=.5), dict(loc=1, scale=.5)))
kde = sm.nonparametric.KDEUnivariate(obs_dist)
kde.fit(gridsize=2**10)
[14]:
<statsmodels.nonparametric.kde.KDEUnivariate at 0x7fd692ab9890>
[15]:
kde.entropy
[15]:
1.314324140492138
[16]:
kde.evaluate(-1)
[16]:
array([0.18085886])

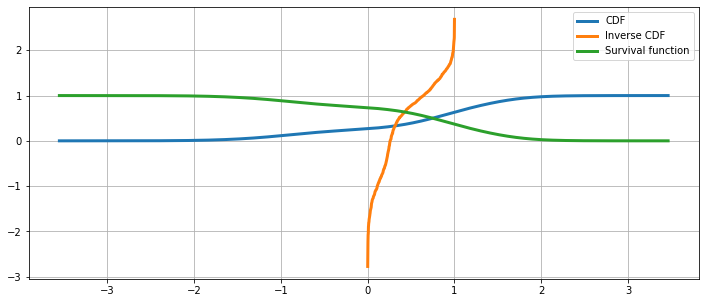

Cumulative distribution, it’s inverse, and the survival function

[17]:
fig = plt.figure(figsize=(12, 5))
ax = fig.add_subplot(111)

ax.plot(kde.support, kde.cdf, lw=3, label='CDF')
ax.plot(np.linspace(0, 1, num = kde.icdf.size), kde.icdf, lw=3, label='Inverse CDF')
ax.plot(kde.support, kde.sf, lw=3, label='Survival function')
ax.legend(loc = 'best')
ax.grid(True, zorder=-5)
../../../_images/examples_notebooks_generated_kernel_density_34_0.png

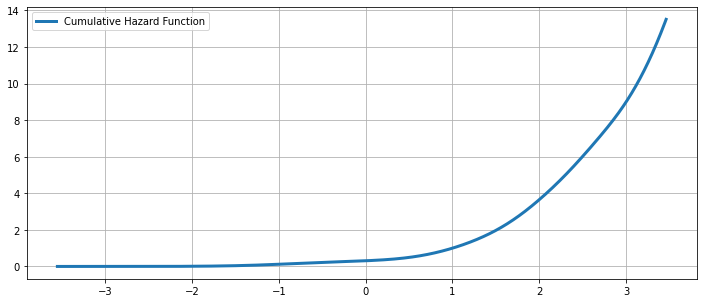

The Cumulative Hazard Function

[18]:
fig = plt.figure(figsize=(12, 5))
ax = fig.add_subplot(111)
ax.plot(kde.support, kde.cumhazard, lw=3, label='Cumulative Hazard Function')
ax.legend(loc = 'best')
ax.grid(True, zorder=-5)
../../../_images/examples_notebooks_generated_kernel_density_36_0.png
