Dates in timeseries models

[1]:
import pandas as pd
import matplotlib.pyplot as plt

import statsmodels.api as sm
from statsmodels.tsa.ar_model import AutoReg, ar_select_order

plt.rc("figure", figsize=(16, 8))
plt.rc("font", size=14)
/tmp/ipykernel_4142/423260575.py:1: DeprecationWarning:
Pyarrow will become a required dependency of pandas in the next major release of pandas (pandas 3.0),
(to allow more performant data types, such as the Arrow string type, and better interoperability with other libraries)
but was not found to be installed on your system.
If this would cause problems for you,
please provide us feedback at https://github.com/pandas-dev/pandas/issues/54466

  import pandas as pd

Getting started

[2]:
data = sm.datasets.sunspots.load()

Right now an annual date series must be datetimes at the end of the year.

[3]:
from datetime import datetime

dates = pd.date_range("1700-1-1", periods=len(data.endog), freq="A-DEC")
/tmp/ipykernel_4142/2467233913.py:3: FutureWarning: 'A-DEC' is deprecated and will be removed in a future version, please use 'YE-DEC' instead.
  dates = pd.date_range("1700-1-1", periods=len(data.endog), freq="A-DEC")

Using Pandas

Make a pandas TimeSeries or DataFrame

[4]:
data.endog.index = dates
endog = data.endog
endog
[4]:
1700-12-31     5.0
1701-12-31    11.0
1702-12-31    16.0
1703-12-31    23.0
1704-12-31    36.0
              ...
2004-12-31    40.4
2005-12-31    29.8
2006-12-31    15.2
2007-12-31     7.5
2008-12-31     2.9
Freq: YE-DEC, Name: SUNACTIVITY, Length: 309, dtype: float64

Instantiate the model

[5]:
selection_res = ar_select_order(endog, 9, old_names=False, seasonal=True, period=11)
pandas_ar_res = selection_res.model.fit()

Out-of-sample prediction

[6]:
pred = pandas_ar_res.predict(start="2005", end="2027")
print(pred)
2005-12-31    25.907501
2006-12-31    29.024373
2007-12-31    18.855729
2008-12-31    21.392012
2009-12-31    25.695092
2010-12-31    49.981886
2011-12-31    76.437566
2012-12-31    86.244709
2013-12-31    89.184663
2014-12-31    72.251362
2015-12-31    48.447259
2016-12-31    32.292122
2017-12-31    22.374099
2018-12-31    18.581657
2019-12-31    22.935657
2020-12-31    34.513168
2021-12-31    47.828469
2022-12-31    65.487766
2023-12-31    76.551575
2024-12-31    84.185043
2025-12-31    72.029019
2026-12-31    52.603134
2027-12-31    39.330875
Freq: YE-DEC, dtype: float64
[7]:

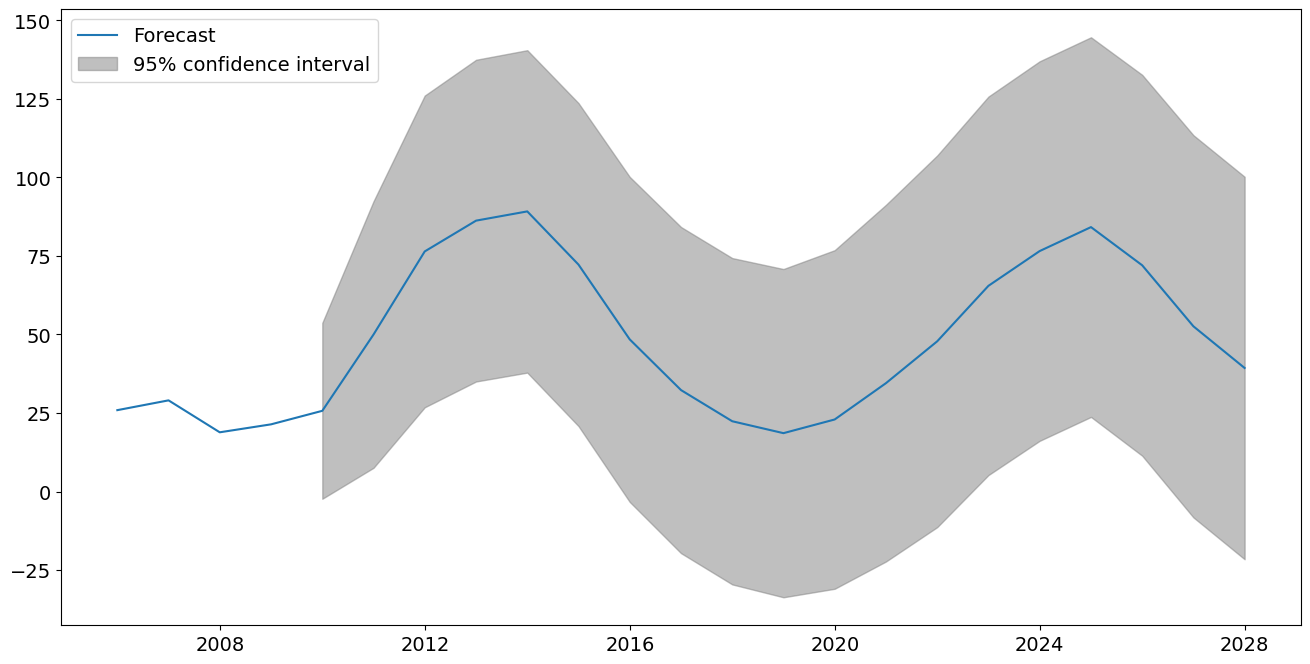

fig = pandas_ar_res.plot_predict(start="2005", end="2027")
../../../_images/examples_notebooks_generated_tsa_dates_12_0.png

Last update: Feb 14, 2024
