Markov switching dynamic regression models

This notebook provides an example of the use of Markov switching models in statsmodels to estimate dynamic regression models with changes in regime. It follows the examples in the Stata Markov switching documentation, which can be found at http://www.stata.com/manuals14/tsmswitch.pdf.

[1]:
%matplotlib inline

import numpy as np
import pandas as pd
import statsmodels.api as sm
import matplotlib.pyplot as plt

# NBER recessions
from pandas_datareader.data import DataReader
from datetime import datetime
usrec = DataReader('USREC', 'fred', start=datetime(1947, 1, 1), end=datetime(2013, 4, 1))

Federal funds rate with switching intercept

The first example models the federal funds rate as noise around a constant intercept, but where the intercept changes during different regimes. The model is simply:

\[r_t = \mu_{S_t} + \varepsilon_t \qquad \varepsilon_t \sim N(0, \sigma^2)\]

where \(S_t \in \{0, 1\}\), and the regime transitions according to

\[\begin{split} P(S_t = s_t | S_{t-1} = s_{t-1}) = \begin{bmatrix} p_{00} & p_{10} \\ 1 - p_{00} & 1 - p_{10} \end{bmatrix}\end{split}\]

We will estimate the parameters of this model by maximum likelihood: \(p_{00}, p_{10}, \mu_0, \mu_1, \sigma^2\).

The data used in this example can be found at https://www.stata-press.com/data/r14/usmacro.

[2]:
# Get the federal funds rate data
from statsmodels.tsa.regime_switching.tests.test_markov_regression import fedfunds
dta_fedfunds = pd.Series(fedfunds, index=pd.date_range('1954-07-01', '2010-10-01', freq='QS'))

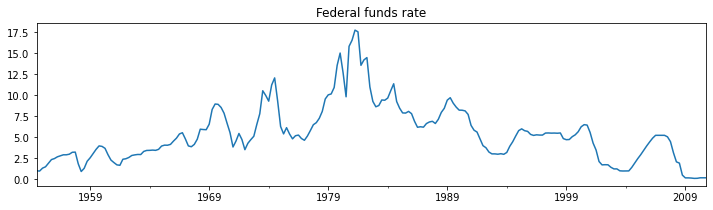

# Plot the data
dta_fedfunds.plot(title='Federal funds rate', figsize=(12,3))

# Fit the model
# (a switching mean is the default of the MarkovRegession model)
mod_fedfunds = sm.tsa.MarkovRegression(dta_fedfunds, k_regimes=2)
res_fedfunds = mod_fedfunds.fit()
../../../_images/examples_notebooks_generated_markov_regression_4_0.png
[3]:
res_fedfunds.summary()
[3]:
Markov Switching Model Results
Dep. Variable: y No. Observations: 226
Model: MarkovRegression Log Likelihood -508.636
Date: Tue, 02 Feb 2021 AIC 1027.272
Time: 06:54:13 BIC 1044.375
Sample: 07-01-1954 HQIC 1034.174
- 10-01-2010
Covariance Type: approx
Regime 0 parameters
coef std err z P>|z| [0.025 0.975]
const 3.7088 0.177 20.988 0.000 3.362 4.055
Regime 1 parameters
coef std err z P>|z| [0.025 0.975]
const 9.5568 0.300 31.857 0.000 8.969 10.145
Non-switching parameters
coef std err z P>|z| [0.025 0.975]
sigma2 4.4418 0.425 10.447 0.000 3.608 5.275
Regime transition parameters
coef std err z P>|z| [0.025 0.975]
p[0->0] 0.9821 0.010 94.443 0.000 0.962 1.002
p[1->0] 0.0504 0.027 1.876 0.061 -0.002 0.103


Warnings:
[1] Covariance matrix calculated using numerical (complex-step) differentiation.

From the summary output, the mean federal funds rate in the first regime (the “low regime”) is estimated to be \(3.7\) whereas in the “high regime” it is \(9.6\). Below we plot the smoothed probabilities of being in the high regime. The model suggests that the 1980’s was a time-period in which a high federal funds rate existed.

[4]:

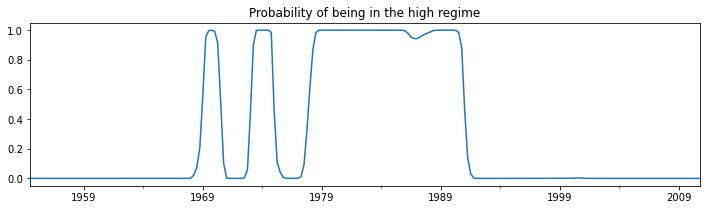

res_fedfunds.smoothed_marginal_probabilities[1].plot(
    title='Probability of being in the high regime', figsize=(12,3));
[4]:
<AxesSubplot:title={'center':'Probability of being in the high regime'}>
../../../_images/examples_notebooks_generated_markov_regression_7_1.png

From the estimated transition matrix we can calculate the expected duration of a low regime versus a high regime.

[5]:
print(res_fedfunds.expected_durations)
[55.85400626 19.85506546]

A low regime is expected to persist for about fourteen years, whereas the high regime is expected to persist for only about five years.

Federal funds rate with switching intercept and lagged dependent variable

The second example augments the previous model to include the lagged value of the federal funds rate.

\[r_t = \mu_{S_t} + r_{t-1} \beta_{S_t} + \varepsilon_t \qquad \varepsilon_t \sim N(0, \sigma^2)\]

where \(S_t \in \{0, 1\}\), and the regime transitions according to

\[\begin{split} P(S_t = s_t | S_{t-1} = s_{t-1}) = \begin{bmatrix} p_{00} & p_{10} \\ 1 - p_{00} & 1 - p_{10} \end{bmatrix}\end{split}\]

We will estimate the parameters of this model by maximum likelihood: \(p_{00}, p_{10}, \mu_0, \mu_1, \beta_0, \beta_1, \sigma^2\).

[6]:
# Fit the model
mod_fedfunds2 = sm.tsa.MarkovRegression(
    dta_fedfunds.iloc[1:], k_regimes=2, exog=dta_fedfunds.iloc[:-1])
res_fedfunds2 = mod_fedfunds2.fit()
[7]:
res_fedfunds2.summary()
[7]:
Markov Switching Model Results
Dep. Variable: y No. Observations: 225
Model: MarkovRegression Log Likelihood -264.711
Date: Tue, 02 Feb 2021 AIC 543.421
Time: 06:54:13 BIC 567.334
Sample: 10-01-1954 HQIC 553.073
- 10-01-2010
Covariance Type: approx
Regime 0 parameters
coef std err z P>|z| [0.025 0.975]
const 0.7245 0.289 2.510 0.012 0.159 1.290
x1 0.7631 0.034 22.629 0.000 0.697 0.829
Regime 1 parameters
coef std err z P>|z| [0.025 0.975]
const -0.0989 0.118 -0.835 0.404 -0.331 0.133
x1 1.0612 0.019 57.351 0.000 1.025 1.097
Non-switching parameters
coef std err z P>|z| [0.025 0.975]
sigma2 0.4783 0.050 9.642 0.000 0.381 0.576
Regime transition parameters
coef std err z P>|z| [0.025 0.975]
p[0->0] 0.6378 0.120 5.304 0.000 0.402 0.874
p[1->0] 0.1306 0.050 2.634 0.008 0.033 0.228


Warnings:
[1] Covariance matrix calculated using numerical (complex-step) differentiation.

There are several things to notice from the summary output:

  1. The information criteria have decreased substantially, indicating that this model has a better fit than the previous model.

  2. The interpretation of the regimes, in terms of the intercept, have switched. Now the first regime has the higher intercept and the second regime has a lower intercept.

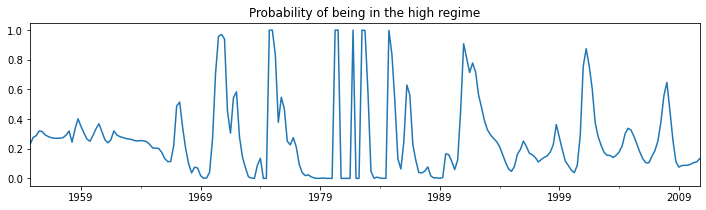

Examining the smoothed probabilities of the high regime state, we now see quite a bit more variability.

[8]:
res_fedfunds2.smoothed_marginal_probabilities[0].plot(
    title='Probability of being in the high regime', figsize=(12,3));
[8]:
<AxesSubplot:title={'center':'Probability of being in the high regime'}>
../../../_images/examples_notebooks_generated_markov_regression_15_1.png

Finally, the expected durations of each regime have decreased quite a bit.

[9]:
print(res_fedfunds2.expected_durations)
[2.76105188 7.65529154]

Taylor rule with 2 or 3 regimes

We now include two additional exogenous variables - a measure of the output gap and a measure of inflation - to estimate a switching Taylor-type rule with both 2 and 3 regimes to see which fits the data better.

Because the models can be often difficult to estimate, for the 3-regime model we employ a search over starting parameters to improve results, specifying 20 random search repetitions.

[10]:
# Get the additional data
from statsmodels.tsa.regime_switching.tests.test_markov_regression import ogap, inf
dta_ogap = pd.Series(ogap, index=pd.date_range('1954-07-01', '2010-10-01', freq='QS'))
dta_inf = pd.Series(inf, index=pd.date_range('1954-07-01', '2010-10-01', freq='QS'))

exog = pd.concat((dta_fedfunds.shift(), dta_ogap, dta_inf), axis=1).iloc[4:]

# Fit the 2-regime model
mod_fedfunds3 = sm.tsa.MarkovRegression(
    dta_fedfunds.iloc[4:], k_regimes=2, exog=exog)
res_fedfunds3 = mod_fedfunds3.fit()

# Fit the 3-regime model
np.random.seed(12345)
mod_fedfunds4 = sm.tsa.MarkovRegression(
    dta_fedfunds.iloc[4:], k_regimes=3, exog=exog)
res_fedfunds4 = mod_fedfunds4.fit(search_reps=20)
[11]:
res_fedfunds3.summary()
[11]:
Markov Switching Model Results
Dep. Variable: y No. Observations: 222
Model: MarkovRegression Log Likelihood -229.256
Date: Tue, 02 Feb 2021 AIC 480.512
Time: 06:54:19 BIC 517.942
Sample: 07-01-1955 HQIC 495.624
- 10-01-2010
Covariance Type: approx
Regime 0 parameters
coef std err z P>|z| [0.025 0.975]
const 0.6555 0.137 4.771 0.000 0.386 0.925
x1 0.8314 0.033 24.951 0.000 0.766 0.897
x2 0.1355 0.029 4.609 0.000 0.078 0.193
x3 -0.0274 0.041 -0.671 0.502 -0.107 0.053
Regime 1 parameters
coef std err z P>|z| [0.025 0.975]
const -0.0945 0.128 -0.739 0.460 -0.345 0.156
x1 0.9293 0.027 34.309 0.000 0.876 0.982
x2 0.0343 0.024 1.429 0.153 -0.013 0.081
x3 0.2125 0.030 7.147 0.000 0.154 0.271
Non-switching parameters
coef std err z P>|z| [0.025 0.975]
sigma2 0.3323 0.035 9.526 0.000 0.264 0.401
Regime transition parameters
coef std err z P>|z| [0.025 0.975]
p[0->0] 0.7279 0.093 7.828 0.000 0.546 0.910
p[1->0] 0.2115 0.064 3.298 0.001 0.086 0.337


Warnings:
[1] Covariance matrix calculated using numerical (complex-step) differentiation.
[12]:
res_fedfunds4.summary()
[12]:
Markov Switching Model Results
Dep. Variable: y No. Observations: 222
Model: MarkovRegression Log Likelihood -180.806
Date: Tue, 02 Feb 2021 AIC 399.611
Time: 06:54:19 BIC 464.262
Sample: 07-01-1955 HQIC 425.713
- 10-01-2010
Covariance Type: approx
Regime 0 parameters
coef std err z P>|z| [0.025 0.975]
const -1.0250 0.290 -3.531 0.000 -1.594 -0.456
x1 0.3277 0.086 3.812 0.000 0.159 0.496
x2 0.2036 0.049 4.152 0.000 0.107 0.300
x3 1.1381 0.081 13.977 0.000 0.978 1.298
Regime 1 parameters
coef std err z P>|z| [0.025 0.975]
const -0.0259 0.087 -0.298 0.765 -0.196 0.144
x1 0.9737 0.019 50.265 0.000 0.936 1.012
x2 0.0341 0.017 2.030 0.042 0.001 0.067
x3 0.1215 0.022 5.606 0.000 0.079 0.164
Regime 2 parameters
coef std err z P>|z| [0.025 0.975]
const 0.7346 0.130 5.632 0.000 0.479 0.990
x1 0.8436 0.024 35.198 0.000 0.797 0.891
x2 0.1633 0.025 6.515 0.000 0.114 0.212
x3 -0.0499 0.027 -1.835 0.067 -0.103 0.003
Non-switching parameters
coef std err z P>|z| [0.025 0.975]
sigma2 0.1660 0.018 9.240 0.000 0.131 0.201
Regime transition parameters
coef std err z P>|z| [0.025 0.975]
p[0->0] 0.7214 0.117 6.177 0.000 0.493 0.950
p[1->0] 4.001e-08 nan nan nan nan nan
p[2->0] 0.0783 0.038 2.079 0.038 0.004 0.152
p[0->1] 0.1044 0.095 1.103 0.270 -0.081 0.290
p[1->1] 0.8259 0.054 15.208 0.000 0.719 0.932
p[2->1] 0.2288 0.073 3.150 0.002 0.086 0.371


Warnings:
[1] Covariance matrix calculated using numerical (complex-step) differentiation.

Due to lower information criteria, we might prefer the 3-state model, with an interpretation of low-, medium-, and high-interest rate regimes. The smoothed probabilities of each regime are plotted below.

[13]:

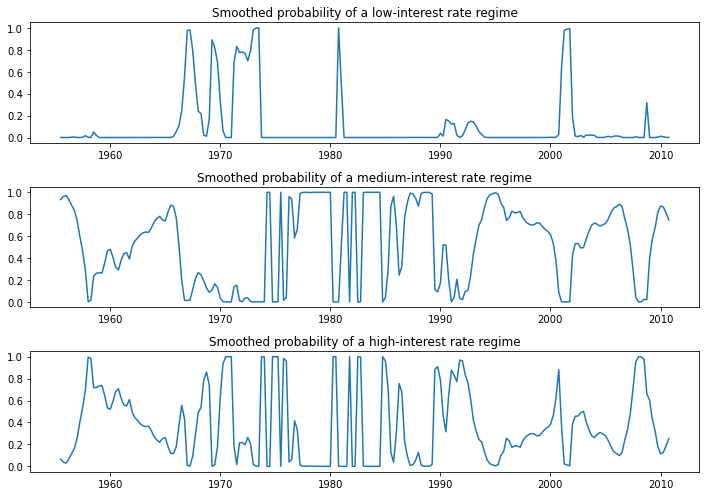

fig, axes = plt.subplots(3, figsize=(10,7))

ax = axes[0]
ax.plot(res_fedfunds4.smoothed_marginal_probabilities[0])
ax.set(title='Smoothed probability of a low-interest rate regime')

ax = axes[1]
ax.plot(res_fedfunds4.smoothed_marginal_probabilities[1])
ax.set(title='Smoothed probability of a medium-interest rate regime')

ax = axes[2]
ax.plot(res_fedfunds4.smoothed_marginal_probabilities[2])
ax.set(title='Smoothed probability of a high-interest rate regime')

fig.tight_layout()
../../../_images/examples_notebooks_generated_markov_regression_23_0.png

Switching variances

We can also accommodate switching variances. In particular, we consider the model

\[y_t = \mu_{S_t} + y_{t-1} \beta_{S_t} + \varepsilon_t \quad \varepsilon_t \sim N(0, \sigma_{S_t}^2)\]

We use maximum likelihood to estimate the parameters of this model: \(p_{00}, p_{10}, \mu_0, \mu_1, \beta_0, \beta_1, \sigma_0^2, \sigma_1^2\).

The application is to absolute returns on stocks, where the data can be found at https://www.stata-press.com/data/r14/snp500.

[14]:
# Get the federal funds rate data
from statsmodels.tsa.regime_switching.tests.test_markov_regression import areturns
dta_areturns = pd.Series(areturns, index=pd.date_range('2004-05-04', '2014-5-03', freq='W'))

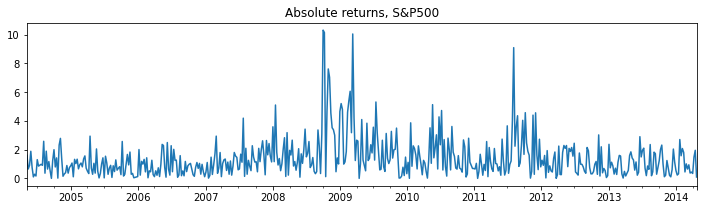

# Plot the data
dta_areturns.plot(title='Absolute returns, S&P500', figsize=(12,3))

# Fit the model
mod_areturns = sm.tsa.MarkovRegression(
    dta_areturns.iloc[1:], k_regimes=2, exog=dta_areturns.iloc[:-1], switching_variance=True)
res_areturns = mod_areturns.fit()
../../../_images/examples_notebooks_generated_markov_regression_25_0.png
[15]:
res_areturns.summary()
[15]:
Markov Switching Model Results
Dep. Variable: y No. Observations: 520
Model: MarkovRegression Log Likelihood -745.798
Date: Tue, 02 Feb 2021 AIC 1507.595
Time: 06:54:20 BIC 1541.626
Sample: 05-16-2004 HQIC 1520.926
- 04-27-2014
Covariance Type: approx
Regime 0 parameters
coef std err z P>|z| [0.025 0.975]
const 0.7641 0.078 9.761 0.000 0.611 0.918
x1 0.0791 0.030 2.620 0.009 0.020 0.138
sigma2 0.3476 0.061 5.694 0.000 0.228 0.467
Regime 1 parameters
coef std err z P>|z| [0.025 0.975]
const 1.9728 0.278 7.086 0.000 1.427 2.518
x1 0.5280 0.086 6.155 0.000 0.360 0.696
sigma2 2.5771 0.405 6.357 0.000 1.783 3.372
Regime transition parameters
coef std err z P>|z| [0.025 0.975]
p[0->0] 0.7531 0.063 11.871 0.000 0.629 0.877
p[1->0] 0.6825 0.066 10.301 0.000 0.553 0.812


Warnings:
[1] Covariance matrix calculated using numerical (complex-step) differentiation.

The first regime is a low-variance regime and the second regime is a high-variance regime. Below we plot the probabilities of being in the low-variance regime. Between 2008 and 2012 there does not appear to be a clear indication of one regime guiding the economy.

[16]:

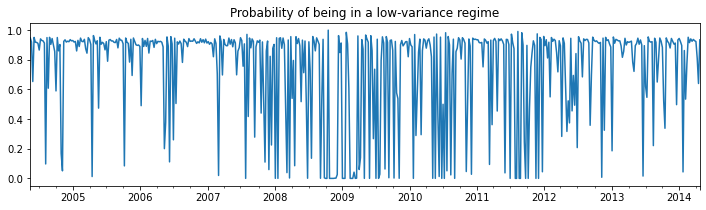

res_areturns.smoothed_marginal_probabilities[0].plot(
    title='Probability of being in a low-variance regime', figsize=(12,3));
[16]:
<AxesSubplot:title={'center':'Probability of being in a low-variance regime'}>
../../../_images/examples_notebooks_generated_markov_regression_28_1.png
